Jaco's Quality Control system is approved by the U.S. Government, and most
major Aerospace contractors. But that's only the beginning of Jaco's
commitment to quality. We maintain a fully equipped quality assurance department
with specialized equipment such as optical comparators, profileometer, air
gauges, and a coordinate measuring machine to name a few.
Our entire facility is
climate controlled year round. We've also invested in state of the art
CAD/CAM programming systems, as well as computerized materials management,
inventory and accounting systems.
And lastly, all of our subcontracted services and special processing is
performed only by reputable customer approved suppliers, in strict accordance to
customer or Mil specifications.
Quality System Approvals
Pending Quality System Certifications
 | None |
Tolerances and Sizes
| Milling Maximum Part size: 32" x 22" x 25" Call
for details. |
| Turning Maximum Part size: 15" diameter x 72" length Call
for details. |
| Assemblies Maximum size: 120" x 45" x 45" Call for details. |
| Tolerances as close as + - .000050 are regularly held |
Milling (Mills) Equipment List and Capabilities
| Various state of the art, high-speed, computerized machining centers... |
| Approximate Maximum Part size: 32" x 22" x 25" Call
for details. |
| Mori-Seiki NH4000 DCG Horizontal Machining Center |
| Mori-Seiki SV-50 CNC Vertical Machining Center |
| Mori-Seiki MV45 CNC High Speed Machining Center |
| (2) Kitamura MyCenter-1 CNC High Speed Machining Centers |
| Shizoka CND Machining Center |
| (9) Conventional Shizoka and Bridgeport vertical and horizontal mills |
Turning (Lathes) Equipment List and Capabilities
| Various state of the art, high-speed, computerized turning centers... |
| Approximate Maximum Part size: 15" diameter x 72" length |
| Mori-Seiki SL-35B CNC with Mortic Controls |
| Mori-Seiki SL-25B CNC with Mortic Controls |
| Mori-Seiki SL-3 CNC with Fanuc Controls |
| (2) Mori-Seiki SL-15 High Speed, bar feed, CNC with Fanuc Controls |
| Mori-Seiki TL-5B/1000 CNC with Fanuc Controls |
| (8) Conventional Mori-Seiki, Hardinge, and Southbend lathes of all types. |
Specialized Equipment
| Boyar-Shultz Surface Grinders |
| Sunnen Honing Machines |
| Various horizontal, vertical, cut-off saws |
Quality Assurance Equipment
| Fully furnished Quality Assurance department with all necessary gauges |
| Mitutoyo AE122 Coordinate Measuring Machine (CMM) |
| Statistical Process Control (SPC) capabilities |
| Optical comparators |
| Profileometer |
| Tool Gage Calibration tracking software |
Materials Experience
| All types of aircraft grade alloys and stainless steels |
| All grades of aluminum alloys |
| Exotics such as titanium, Inconel, etc. |
| Plastics such as Nylon, Delrin, Teflon, etc. |
| Castings, forgings, extrusions, stampings, bar and plate stocks |
Assembly Methods Capabilities
| Welding, brazing dip and conventional brazing |
| Press fit, mechanical fastener assembly, riveting, safety wiring |
| Bearing installation and staking |
| Rubber to metal bonding |
| Adhesive bonding |
| IUID / UID Part Marking per Mil-Std-130 is supported |
| Mil-STD-129 RFID Tagging is supported |
Specialized Machining Capabilities
| In addition to conventional and CNC machining, we also can provide
the following: |
| Surface grinding, OD grinding between centers and centerless |
| Broaching, gear cutting, knurling, thread rolling, spline and keyway
cutting |
| Electron Discharge Machining (EDM) both sinker and wire |
| Laser and water cutting |
| Deep hole or gundrilling |
| Lapping, honing, deburring |
| Metal stamping |
| Tube bending and forming |
| Balancing |
| Engraving, laser marking. |
Specialized Testing
| All types of Non Destructive Testing such as: |
| X-Ray, ultrasonic, dye-penetrate, eddy current, etc.. |
| Various types of Destructive Testing such as: |
| Pull and shear testing of materials, chemical analysis, hardness testing,
environmental |
Specialized Processes, Plating, Finishing, and Painting
| Material heat treatment, annealing, cold cycle stabilize, etc. |
| Shot peen, passivation |
| Various types of coatings and plating such as: |
| Chemical film, cadmium and zinc plating, anodizing, Dri-Lube, Teflon
Coating |
| Powder coat, Ion Vapor Deposit, Titanium coating |
| Painting to various Aerospace and Mil specifications using NADCAP
suppliers |
| Electro polishing |
| Chrome plating both hard and cosmetic |
Production Support Systems and Equipment

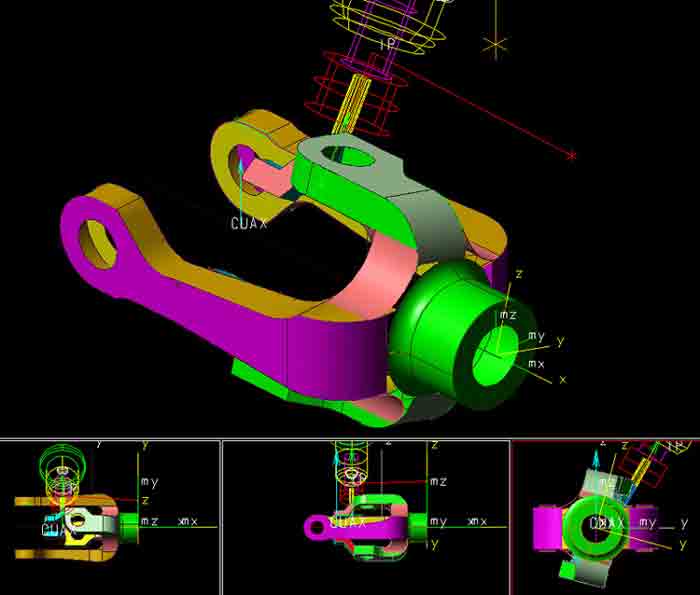

| I-Deas Master Series 6 Computer Modeling (CAD), IGES format supported |

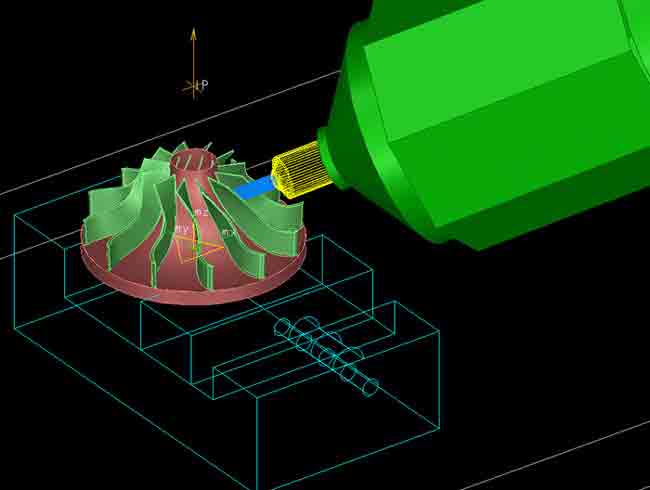

| Camand 4 & 5 Axis Full Simultaneous Programming (CAM) |
| Vista Production Control and Materials Management Software Systems |
| Finished goods and "spares" inventory databases |
| Vista Job Costing and Accounting database systems |
| Secure high speed computer data network, individual email, high speed internet. |
| Secure high speed wireless internet access point for visiting customers and guests. |
Staffing Teams
| Office accounting team |
| Shipping and receiving team |
| Shop Foreperson and Plant General Manager team |
| Sales and Marketing / Bidding and Estimating / Contracts Administration
team |
| In-house CAD/CAM programming staff |
| Quality Assurance team |
| Senior Management, Marketing and Finance team |
A Partial Customer List
| ATK Ordinance |
| Boeing Helicopters |
| Disneyland Resort |
| Eaton Aerospace |
| Goodrich Corporation |
| Lockheed Martin |
| MD Helicopters |
| Northrop Grumman |
| Rockwell Collins |
| U.S. Department of Defense (CAGE 1H427), US Army |
| More references on request. |
|
